Professional LCD Manufacturer Make LCD Simple
10 Years
| Ask Lasest Price | |
| Brand Name : | INNOLUX |
| Model Number : | AT070TN94 |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Supply Ability : | 2000pcs per month |
| Delivery Time : | 25~30days |

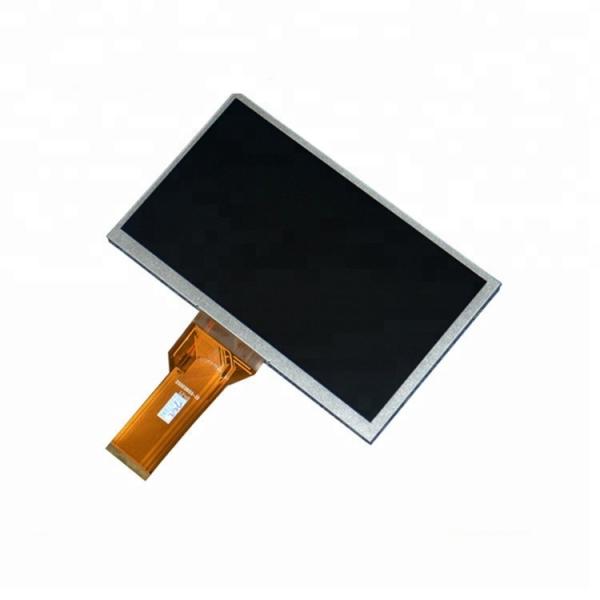

Innolux 50 Pin Connector LCD Display Panels 7 Inch TFT 800X480 At070tn94
PRODUCT DESCRIPITION
| Panel Name: | AT070TN94 |
| Touch Panel: | Optional TP |
| Screen Size: | 7" inch |
| Aspect Ratio: | 16:9 |
| Display Mode: | Transmissive |
| Display Resolution: | 800X3(RGB)X480 |
| PPI ( Pixel per inch ): | 137 |
| Module/Panel Size(mm): | 164.9 x 100.0 x 5.7 |
| Active Area(mm): | 154.08 x 85.92 |
| Dot Pitch(mm): | 0.0642(W) X 0.1790(H) |
| Surface Treatment: | Anti-Glare |
| Viewing Angle (Tpy.)θT/θB/θL/θR: | 50/70/70/70 |
| Viewing direction: | 6 O'Clock |
| NTSC: | 50% |
| Luminance(nits): | 400 |
| Contrast Ratio: | 500 |
| Response Time(ms): | 25 |
| Consumption (W)- Panel: | 0.226 |
| Consumption (W)- Backlight: | 1.674 |
| Module Weight (g): | 150.0 |
| Interface: | 50pin FPC,Parallel 24bit RGB |
| Operation Temperature( ºC): | -30~85 |
| Storage Temperature (ºC): | -30~85 |
| Lamp Type: | White LED backlight Display |
APPLICATION OF CHIMEI INNOLUX G057VGE-T01
IT Products: Digital Video, Media Player, Advertising Machine.
Medical Equipment: Ultrasound Machine, Medial Monitor, Medical Imaging, Healthcare
OUR SERVICE ADVANTAGES
People-oriented, integrity management
100% Original Products
The competitive price and Perfect before/after sales service
Professional Technicist
12 months Warranty
OUR STRENGTH
1. ISO9001 certificated, Factory Direct Supplied.
2. Small MOQ Support & Fast Response to Customers.
3. Long Porduct Life Time.
4. Competitive Price and Short Lead-time.
5. Professional Team with Rich Experiences in Design / Mfg / Quality Control
|
|
