| Brand Name : | ROYAL DISPLAY |
| Model Number : | RYS5228W |
| Certification : | ROHS, ISO |
| Price : | Negotiable |
| Supply Ability : | 1000K pieces/Month |
| Delivery Time : | 15~25 working days |
| Part No | KEM-40011-BSR |
| Dimension | 122*90*15mm |
| Digit height | 101.6mm |
| Surface color | Black/gray |
| Segment color | White / clear |
| Emitting color | super red(620～630nm) |
| Luminous intensity | 100mcd/chip |
| Pin configuration | Common anode/common cathode |
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
| (λp) | λ | Typ | Max | Typ | Max | ||
| Amber | IF=10-15mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
| Super green | IF=10-15mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
| Super red | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
| Ultra red 1 | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 200 | 210 |
| Ultra red 2 | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 300 | 350 |
| High red | IF=10-15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
| Yellow green | IF=10-15mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
| Yellow | IF=10-15mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
| Blue | IF=10-15mA | 465-475 | 40 | 2.95 | 3.0 | 150 | 200 |
| Pure green | IF=10-15mA | 515-525 | 40 | 2.95 | 3.0 | 180 | 250 |
| White | IF=10-15mA | - | - | 2.8 | 2.9 | 180 | 200 |
Segment LCDs, also called static displays or glass-only displays, are constructed of two pieces of ITO (Indium tin oxide) glass with a twisted nematic fluid sandwiched in between. A static display is a segment display with one pin for every one segment.
These displays are still one of the most popular technologies in use and the majority of them are custom. Many people think the process of designing a custom segment liquid crystal display is complicated and too complex to be understood except for a few experienced people. But after designing custom LCDs for over 14 years, it can be said that just about anyone can select the best options for their product.
In other words, you don’t have to be an engineer, or have a PHD from MIT to design a custom LCD for your application. So instead of offering a list of technical terms and equations, these are the different options available.
Overview
1. We can supply you all kinds of 7 segment LED display:
---Digit size: from 0.25" to 16"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 16 segment both available
3. Available Emitting color: Super green,Super red, Yellow green, Pure green, Yellow, Blue, White RGB and bi-color
4. Available surface color: black, grey or red
5. Lens color: white or same as emitting color

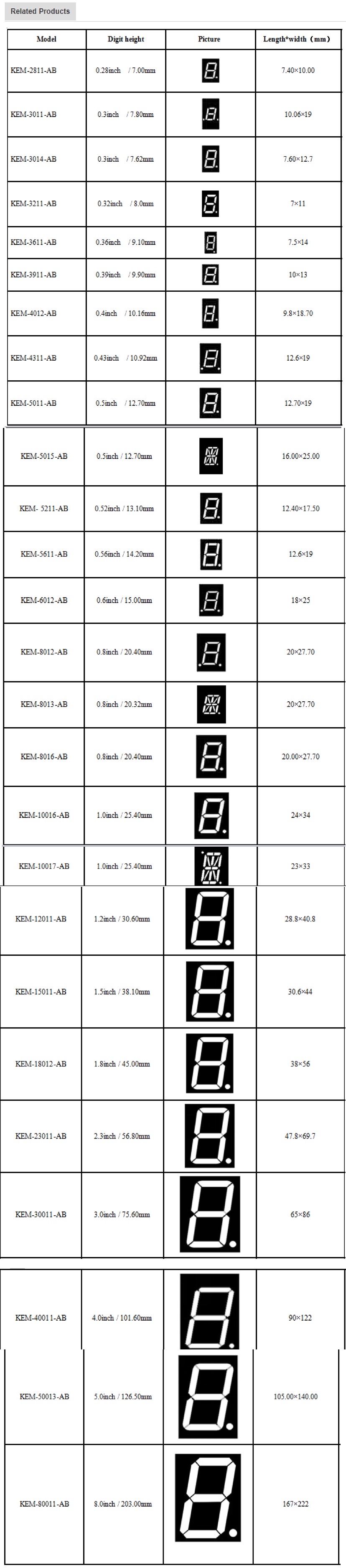

6. We can offer below 7 segment LED display.
|
|
