    0.96in OLED Display 250bpm 100mA Fingertip Oxygen Meter

    Ask Lasest Price
    Brand Name : ROYAL DISPLAY
    Model Number : RYO004
    Certification : SGS ROHS
    Price : Negotiable
    Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram
    Supply Ability : 300k/Month
    Delivery Time : 10-15 Working Days
    • Product Details
    • Company Profile

    0.96in OLED Display 250bpm 100mA Fingertip Oxygen Meter

    Mini Finger Pulse Oximeter Blood Saturation Fingerstrip Oxygen Meter

    Display mode
    0.96" Dual-color OLED display(blue and yellow)
    Screen resolution
    128*64
    SpO2 measuring range
    0%~100%, (the resolution is 1%).
    Accuracy
    70%~100%: ±2%, Below 70% unspecified.
    PR measuring range
    30bpm~250bpm, (the resolution is 1bpm)
    Accuracy
    ±2bpm or ±2% (whichever is greater)
    Measurement performance in weak filling condition
    SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2bpm or ±2%
    (whichever is greater).
    Resistance to surrounding light
    The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less
    than ±1%.
    Power consumption
    no more than 100mA
    Voltage
    DC 3.6V~4.2V
    Power supply
    3.7V rechargeable lithium battery × 1
    Battery working hour
    20 hours in theoretical
    Battery service life
    no less than 500 times of charge and discharge
    Safety type
    Internally powered equipment, Type BF applied part

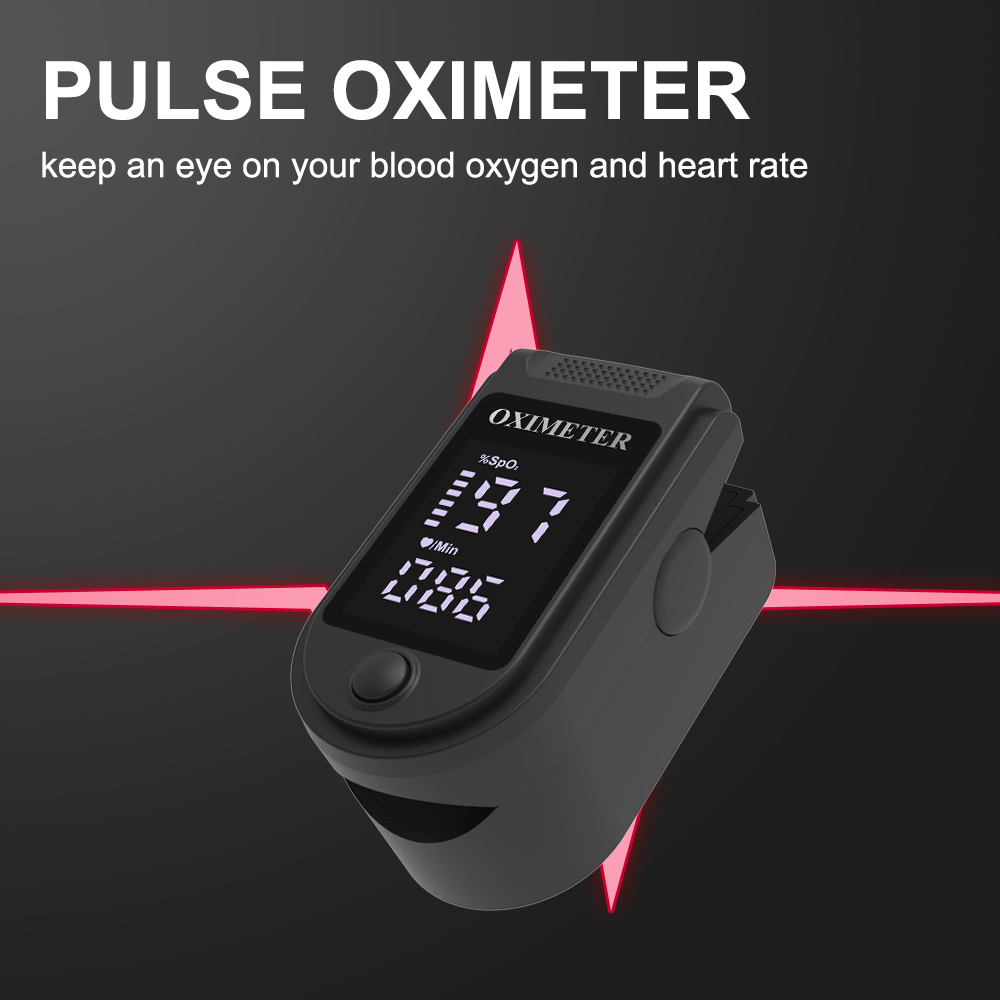

    ABOUT OXIMETER


    Figure pulse oximeter The oximeter monitors fluctuations in blood oxygen saturation in small volume. Using fingers to care family health is easier than going to hospital.

    Features:

    -OLED display: Dual Color OLED display. Better shows the data.

    -Multi-direction display: Rotatable multidirectional display. 4 directions, 6 modes, allow you to view your results in any direction.

    -Alarm function: Set the alarm and beep according to your needs. There will be a warning once the measured values go beyond the setting. Know it immediately.

    -With case: Small in volum, light in weight, convenient to carry. With a landyard and carrying case, convenient to use and to storage

    -Long battery life: 1) Low-power consumption, continuously work for 6 hours.

    2)In the absence of signal, the product will be in after 8 seconds to enter standby state.




    MAJOR FEATURE

    1.Integrated with SpO2 probe and processing display module

    2.Small in volume,light in weight and convenient in carrying

    3.Operation of the product is simple ,low power consumption

    4.SpO2 value display

    5.Pulse rate value display, bar graph display

    6.Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage 7.Various color of cover can be selected



    OUR SERVICE ADVANTAGES


    1.Small order would be accepted.

    2.Mass production lead time would be guaranteed.

    3.Each order will have 0.2%-0.5% spare.

    4.Even customers do not have a cooperation with us, we aslo can provide technical services.

    5.If mass production has any quality problem, customer can return it.
