| Brand Name : | ROYAL DISPLAY |
| Model Number : | RYO12864-108-KSWG7P013 |
| Certification : | SGS ROHS |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability : | 300k/Month |
| Delivery Time : | 10-15 Working Days |
ABOUT OLED DISPLAY

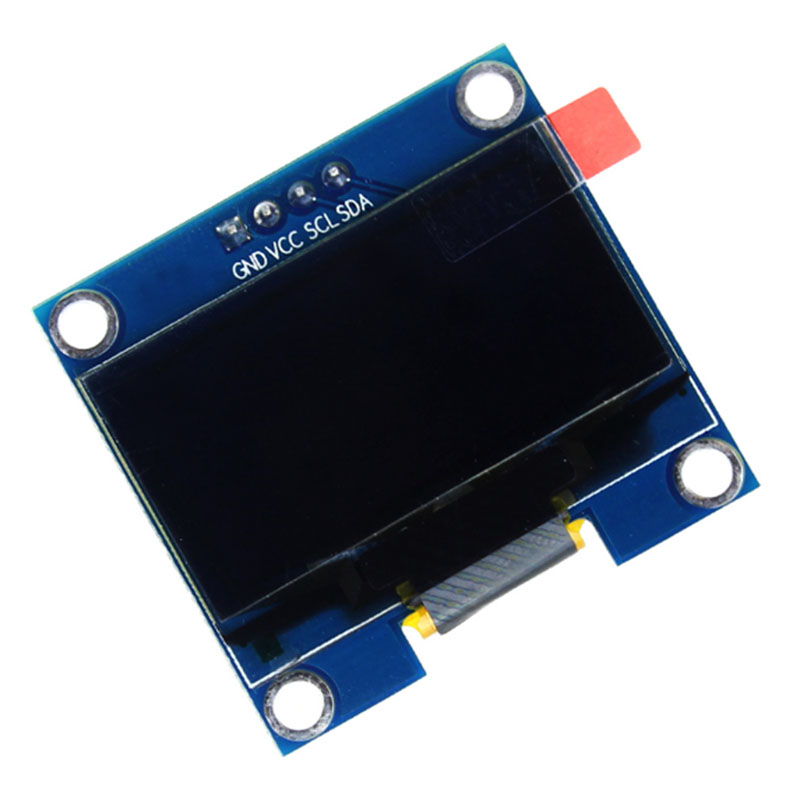

RYO12864-108-KSWG7P013 is the graphic OLED display module,attached with breakout board,made of 128x64 individual Blue OLED pixels,diagonal is only 1.3 inch.The controller ic SH1106, communicates via 4-wire SPI serial or I2C serial interface,3.3V power supply,extremely wide viewing angle and extremely operating temperature. It's 4-wire SPI serial interface with pin header connection by default.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.

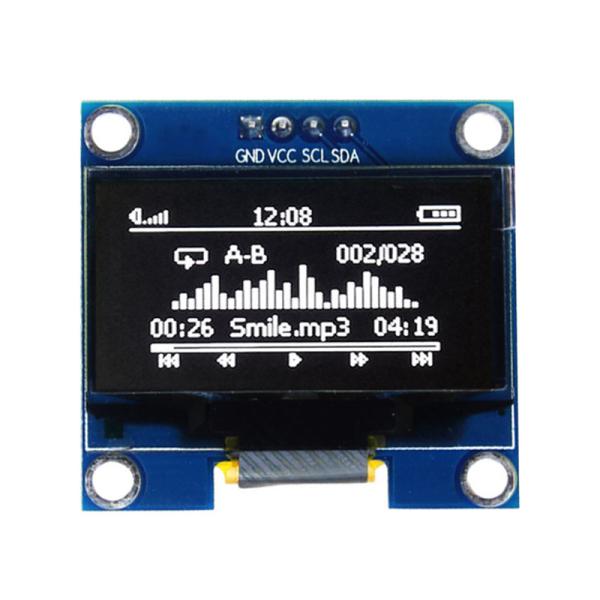

1.3 Inch IIC interface OLED Screen White Color

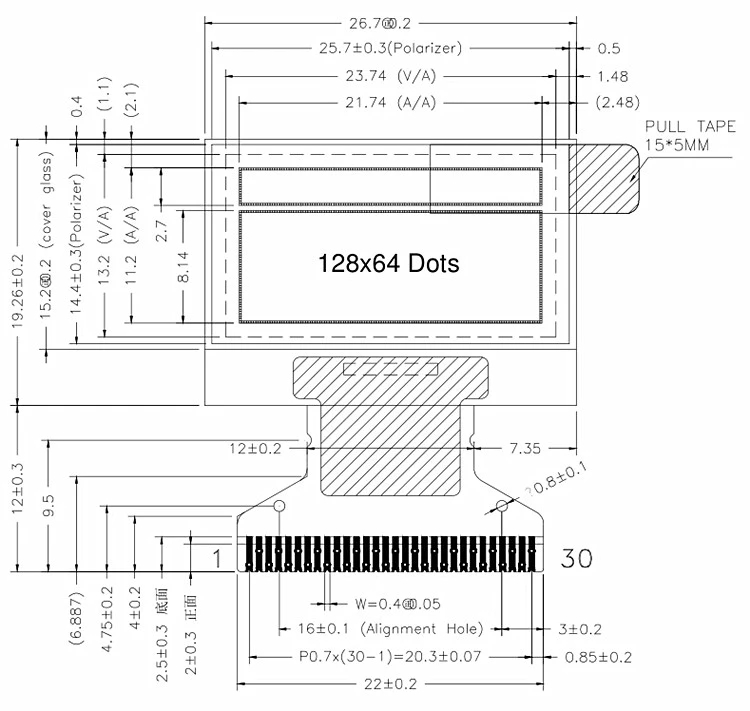

| Dot Matrix: | 128X64 |
| Dots Size: | 0.21 (W) x 0.21 (H) mm |
| Dots Pitch: | 0.23 (W) x 0.23 (H) mm |
| Aperture Rate: | 83.3% |
| IC: | SH1106 |
| Color: | White & Blue |
| Active Area: | 29.42 (W) x 14.7 (H) mm |
| View Area: | 34.5(W)x23.0(H) mm |
| Module Size: | 35.4(W)x33.5(H)x2.7Max(T) mm |
| Place of Origin: | China(mainland) |
| Delivery: | Samples: 1-5 working days after payment confirmed |
| Payment Terms: | T/T, Weatern Union, Paypal |
| MOQ: | 1 Piece |
PRODUCT APPLICATION
OUR SERVICE ADVANTAGES
1.Small order would be accepted.
2.Mass production lead time would be guaranteed.
3.Each order will have 0.2%-0.5% spare.
4.Even customers do not have a cooperation with us, we aslo can provide technical services.
5.If mass production has any quality problem, customer can return it.
|
|
