Professional LCD Manufacturer Make LCD Simple
10 Years
| Ask Lasest Price | |
| Brand Name : | Royal Diaplay |
| Model Number : | RYOM-091-01 |
| Certification : | ISO Rohs |
| Price : | Negotiable |
| Payment Terms : | Western Union, L/C, T/T |
| Supply Ability : | 30K/M |
| Delivery Time : | 20-28 work days |

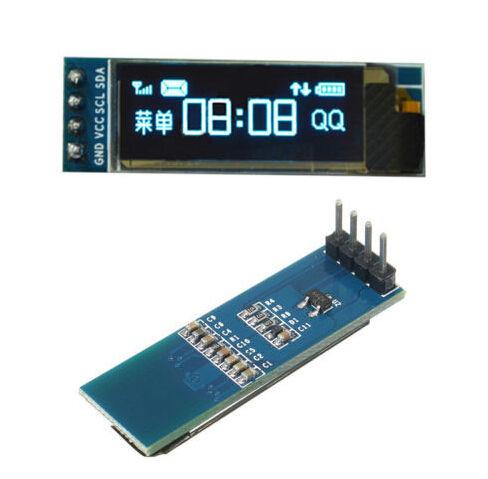

Specification Of 0.91 Inch 128x32 Dots OLED Module
| Item | Description |
| Diagonal Screen Size | 0.91 inch |
| Color | Mono(White) |
| Model number | GME12832-11 |
| Resolutions | 128x32 |
| Outline dimension | 38×12×2.6mm |
| Active area | 22.38×5.584mm |
| Pixel pitch | 0.175×0.175mm |
| Pixel size | 0.159×0.159mm |
| Driver IC | SSD1306 |
| Voltage | 3-5V |
| Interface | IIC |
| Operating temperature | -40~85℃ |
| Storge Temperature | -40~85℃ |
| Assemble | Soldering |
| Pins | 4P |
Similar OLED Display
OLED Display Application
Our OLED Displays are widely used at consumer and industrial
applications such as Audio, Automotive control panels, Medical
devices, White goods or Home automation products, Smart Watch,
Smart Bracelet, Device, Equipment, Printer, Projector, Scanner, Fax
Machine, Copier, Bar Code Printer and etc.
0.91 Inch Monochrome OLED Module Service Advantages
1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. Each order will have 0.2% - 0.5% spare.
4. Even customers do not have a cooperation with us, we also can provide technical services.
5. If mass production has any quality problem, customer can return it.
|
|
