100% Replace WG160128B 160*128 Graphic LCD Module With T6963C Controller
Quick Detail of 160*128 Graphic LCD Module
RYP160128A is a monochrome graphic LCD 160x128 dot matrix display
module which is having the module dimension of 129x102 mm and AA
size of 95.96x75.76 mm. This RYP160128A model is built in with RA6963 controller; it communicates via 8080
8-bit parallel interface; 5V power supply or 3.3V negative voltage
optional. This lcd display 160x128 module is available for graphic
mode or Character Generator mode (Character font) optional. It can
be operating at temperatures from -20℃ to +70℃; its storage
temperatures range from -30℃ to +80℃.
Specification of Monochrome 160*128 LCD display
| Item | Description |
| Product Name | 160x128 LCD Module |
| Model No. | RYP160128A |
| Dot Format | 160x128 |
| Outline (mm) | 129.0*102.0*13.0mm |
| Active Area(mm) | 38.44(H) x 66.9 (V) |
| Display Mode | STN Blue |
| Duty | 1/128 |
| Driver IC | T6963C |
| Viewing Direction | 6:00 |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |

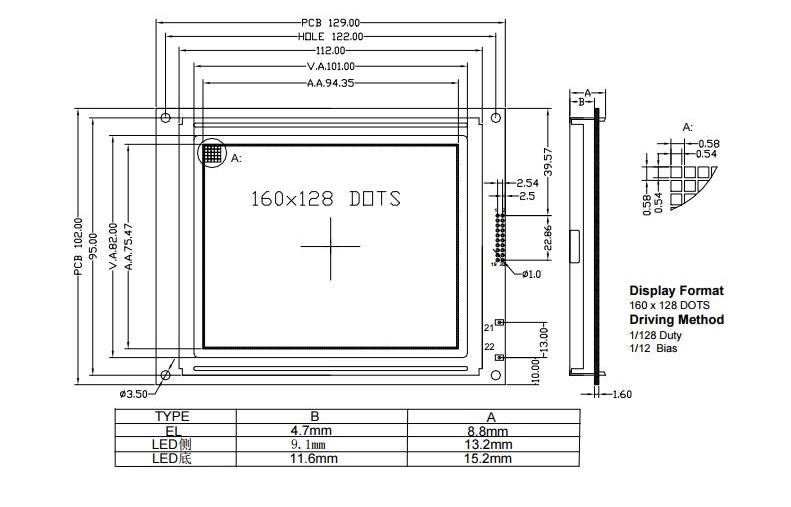

Contour Drawing of 160*128 Dot Matrix LCD Module
Features of 160*128 Monochrome LCD Module
RYP160128A is a graphic LCD display 160x128, the module dimension 129×102 mm. RYP160128A utilizes IC RA6963 supporting 8080 interface. The module has a PCB with screw holes and peripheral circuit for easy mounting and usage. The driver voltage is 5V, there is built negative voltage. The driving method is 1/128. The pin of RYP160128AGraphic LCD 160x128 module is from pin header of 2.54 mm pitch (please note the standard package doesn’t include pin header). There are 2 viewing angle options to choose from, one is 12 o’clock and the other is 6 o’clock. We offer a variety of combinations of LED backlight and LCD mode. Please contact us for your request.
FAQ About Graphic LCD Module
Q: Products are in stock? How long can you deliver?
A: Our inventory is mainly semi-finished and raw materials and a
small amount of finished products. Small batch delivery takes 2-3
weeks and large batch delivery takes 3-4 weeks.
Q: How long is the warranty and service of the product?
A: The damage caused by the product during normal use, during the
warranty period, our company is free to repair, the warranty
period, or the damage caused by improper use is not within the
scope of free maintenance. As long as it is our products, we can
provide technical support services.
Q:The LCD screen can be exported directly? what certification could
provide ?
A:Liquid crystal products comply with the RoHS standard, can be
directly exported.Products by RoHS, CE, SGS certification.
Q: What kind of packaging? The transport process will not be
damaged?
A:Our products are divided into three categories, small size
screens use foam packaging, small and medium size use knife card
isolation packaging, large size screens are used in aircraft box
packaging, all packages are protected by outer box and strapping to
ensure the safety of material transportation.
Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product
related information and test reports.
Q:The product specification is in Chinese or English?
A:There are two version of product specifications: Chinese and
English.
|
|
