| Brand Name : | ROYAL DISPLAY |
| Model Number : | RYP0802B-Y |
| Certification : | ROHS, CE |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram, PayPal |
| Supply Ability : | 300k/Month |
| Delivery Time : | 15~25 working days |
FSTN 8*2 LCD Module NT7066U 0802 character LCD display module
AKA: 0802 Alphanumeric Display Module

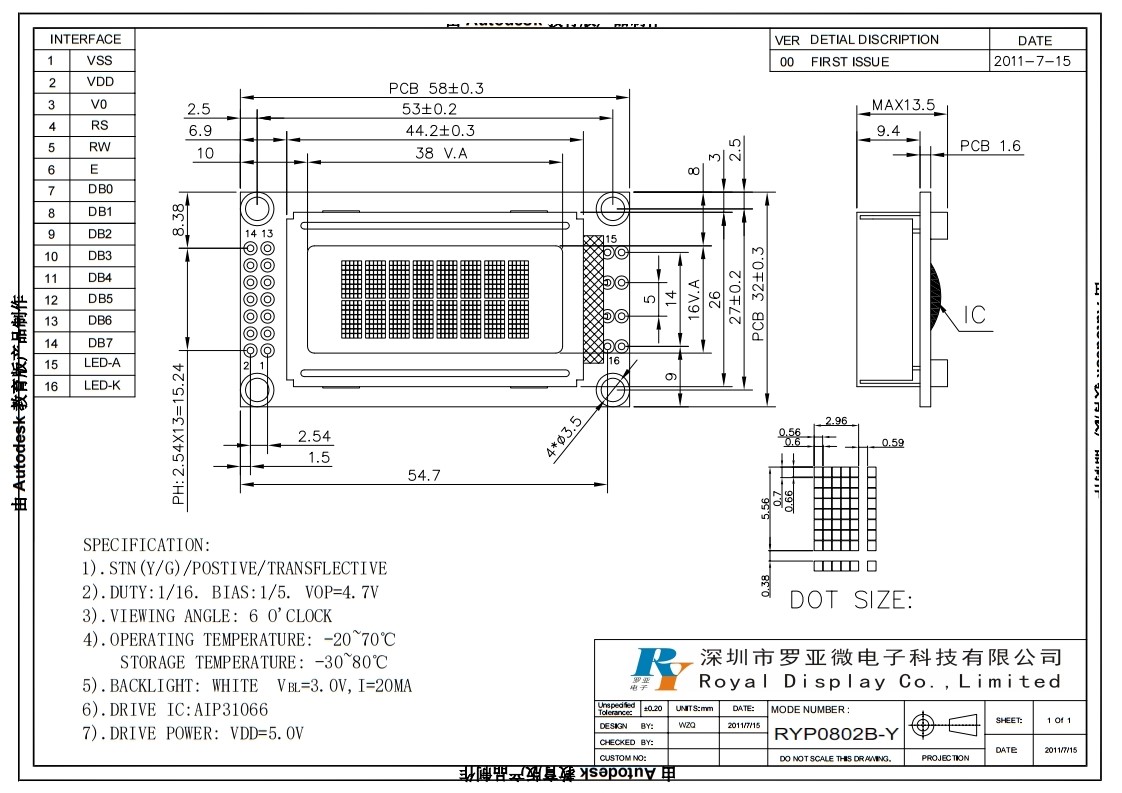

Module size: 58(L) * 32(W) * Max 13.8(T)
Driver: NT7066U
| LCD Name | 0802 Character LCD Screen STN 8x2 LCD Display Module | ||
| Display Format | 8character*2 line | Display Mode | FSTN, positive, transmissive |
| LCD Color | Display dot : white, Background: Blue | Surface Treatment | Anti-glare |
| Outline Dimension | 58.0(W) x32(H) x 6.8MAX(T) mm | Viewing Area | 38.0MIN(W) x16.0MIN(H) mm |
| Viewing Direction | 6 O’clock | Interface Input Data | 4-bit or 8-bit MPU interface enabled |
| Backlight | WHITE | Driving Method | 1/16 Duty, 1/5 Bias |
| Operating Temp. | -20℃~+70℃ | Storage Temp. | -30℃~+80℃ |
An 8 x 2 dot matrix Character LCD Module display in FSTN Positive
LCD Module, Six O’clock viewing direction, Wide Temperature Range
(Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and
white LED Backlight. It has a transmissive polarizer, recommended
for applications that will be used both indoor and outdoor. This
product is assembled Chip On board with 1/16 Duty and a Controller
IC NT7066U or equivalent. The interface type is Serial – SPI. This is an ROHS
Compliant product manufactured with ISO standards and procedures.
CUSTOMIZATION SERVICES
ABOUT ROYAL DISPLAY
Royal Display offers a wide range of standard Character LCD modules for customers' application. Our LCD character displays are available from 8x2, 12x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2 through to 40x4 formats with 5x8 dot matrix characters. The LCD panel technologies include TN, STN, FSTN, FFSTN types and also with polarizer positive mode and negative mode options. There are different LED backlights are available in various colors including yellow/green, white, red, blue, green, amber, and RGB LEDs as well as no backlight option.
To meet the demands of customer applications, these character LCD displays are available with viewing angles of 6:00, 12:00, 3:00, and 9:00 o'clock. Royal Display offers various IC options of character fonts including English/Japanese, western European, eastern European, Scandinavian European, Cyrillic (Russian), and Hebrew/Arabic. These LCD character module and LCM Modules can be used on industrial and consumer's applications including entrance guard's equipment, telegram, medical device, car and home audio, white goods, game machine, toys and etc.
|
|
