Professional LCD Manufacturer Make LCD Simple
10 Years
| Ask Lasest Price | |
| Brand Name : | ROYAL DISPLAY |
| Model Number : | RYP19280A |
| Certification : | ISO Rohs |
| Price : | Negotiable |
| Payment Terms : | Western Union, L/C, T/T |
| Supply Ability : | 300k/Month |
| Delivery Time : | 25~28 Working Days |

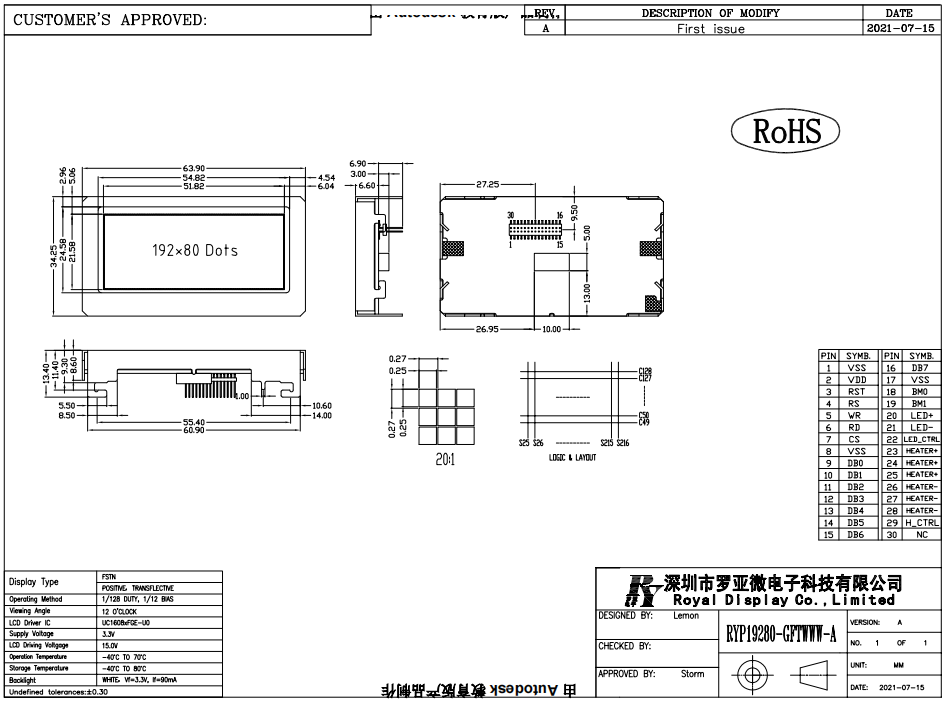

192X80 FSTN Dot Matrix Transflective Positive LCD Display Module
PRODUCT DESCRIPTION
| Item | Description |
| LCD Type | FSTN |
| Model No. | RYP19280A |
| Module Size(mm) | 63.90(L)X34.25(W)X13.40(T) |
| Active Area(mm) | 51.82(L)X21.58(W) |
| Drive Method | 1/128 duty 1/12bias |
| Backlight | White Vf=3.3v,If=90mA |
| Operating Temp | -40º C~70ºC |
| Storage Temp | -40º C~80º C |
ABOUT US
Royal Display Co., Ltd has been specializing in LCD business for
more than 10 years, products range LCD Display, LCD Screen, LCD
Module, Character LCD, LED backlight display, TFT display, Graphic
LCD, 7 segment LED Display.
More than 90% of our products is specially customer designed to be
used in Video and Audio system, financial, medical, industry
equipment, testing devices, Electronic meters, facsimiles, many
kinds of terminal equipment and so on. With the capability of 300K
different kinds of LCM/LCD per month.
|
|
