Professional LCD Manufacturer Make LCD Simple
10 Years
| Ask Lasest Price | |
| Brand Name : | ROHS |
| Model Number : | RYP2002B |
| Certification : | RoHS, ISO |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time : | 20-25 working days |

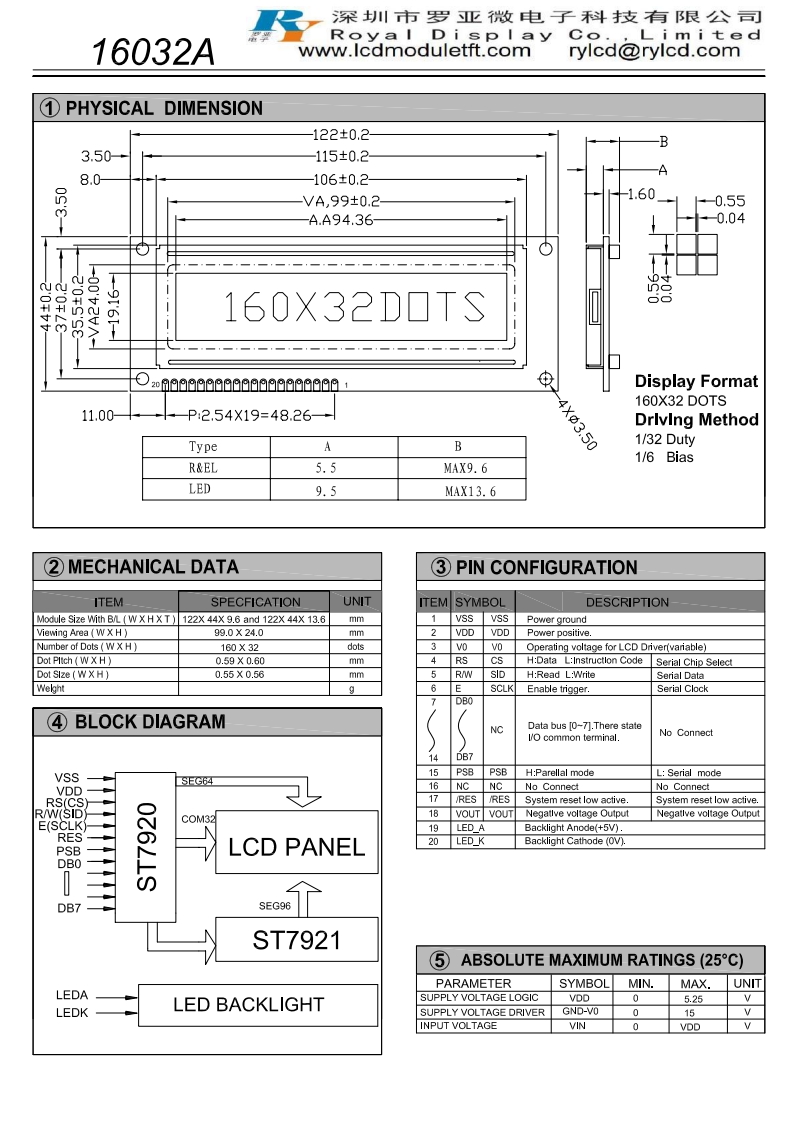

160X32 Stn YG FSTN Optional Dot Matrix LCD Display With PCB For Industy
PRODUCT DESCRIPTION
| Item | Description |
| Product Name | STN 160*32dots LCD Display |
| Model No. | RYP16032A |
| Dot Format | 160*32 |
| Module Size(mm) | 122.0(W)*44.0(H)*9.60(D) |
| Viewing Area(mm) | 99.0(W)*24.0(H) |
| Dot Pitch(mm) | 0.59(W)*0.60(H) |
| Dot Size(mm) | 0.55(W)*0.56(H) |
| Driver IC | ST7920 |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
WHAT CAN WE CUSTOM?
1. LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN
2. Display form: LCD panel/COB/COG/COF
3. Polarizer: Transflective, Transmissive, Reflective
4. Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber,
others
5. Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others
6. Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC
ABOUT US
Royal Display Co., Ltd has been specializing in LCD business for
more than 10 years, products range LCD Display, LCD Screen, LCD
Module, Character LCD, LED backlight display, TFT display, Graphic
LCD, 7 segment LED Display.
More than 90% of our products is specially customer designed to be
used in Video and Audio system, financial, medical, industry
equipment, testing devices, Electronic meters, facsimiles, many
kinds of terminal equipment and so on. With the capability of 300K
different kinds of LCM/LCD per month.
|
|
