Professional LCD Manufacturer Make LCD Simple
10 Years
| Ask Lasest Price | |
| Brand Name : | Royal Display |
| Model Number : | RYB-20221-20A |
| Certification : | Rohs,ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 10k/Month |
| Delivery Time : | 25~28 Working Days |

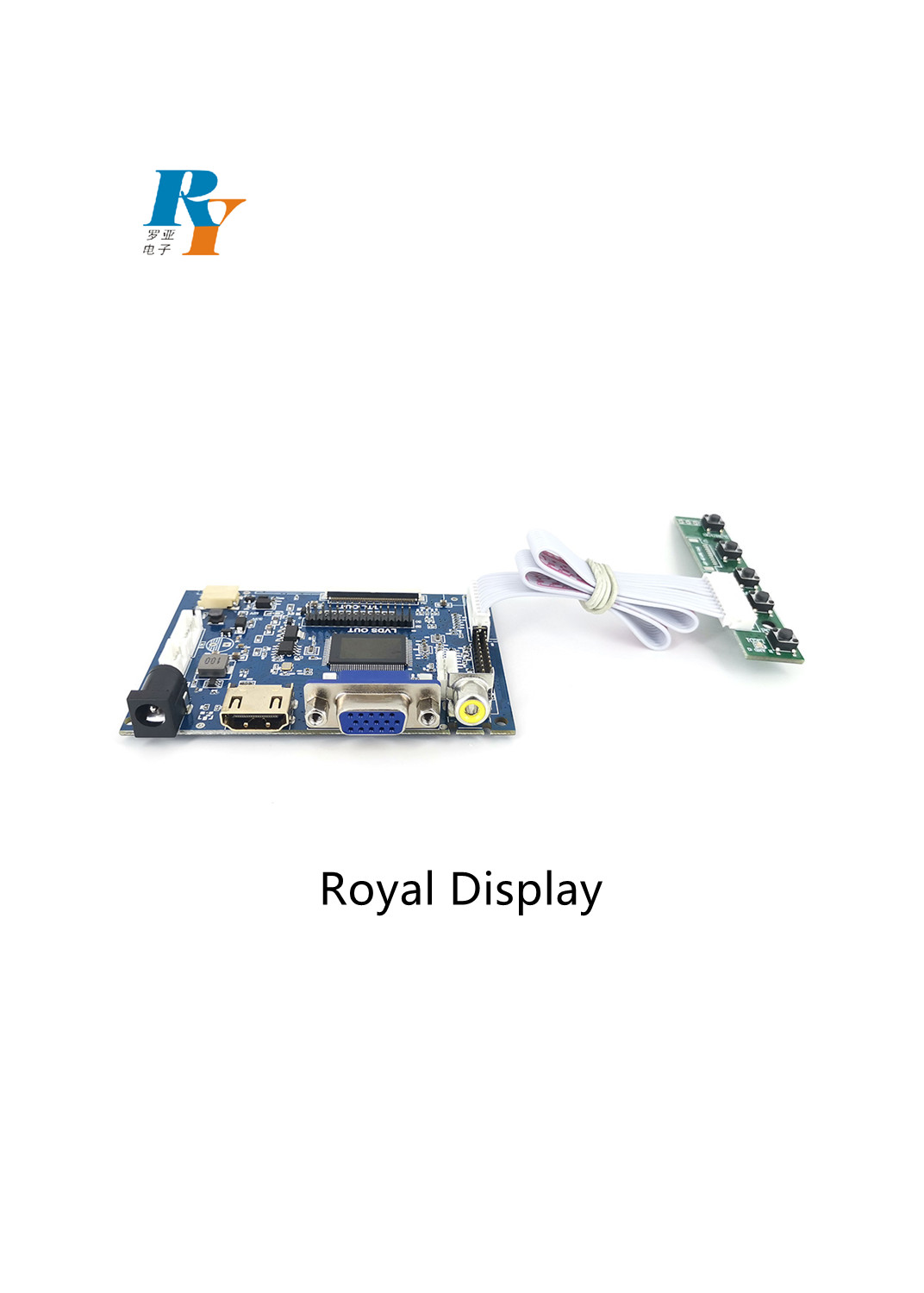

TFT LCD Driver TTL 50pin LVDS 30pin Interface Universal Lcd Controller Board With HD MI VGA AV
Product Description
Video input | |
Features | parameter |
HD MI | Resolution: Max 1920x1200 |
VGA | Resolution: Max 1920x1080 |
AV(CVBS) | PAL/NTSC/SECAM; 1.0vp-p ±5% |
Video system | NTSC/PAL/SECAM |
Power supply | |
Working voltage | 11.25~13.25V |
Panel voltage select | 3.3V/5V/12V |
Standby consumption | 0.5W ; 10-40mA |
Other | |
Key function | Power / Menu / Source / UP / Down / Left / Right |
Language | English German French Italian Spanish Russian Arabic |
Storage temerature | -40~85°C |
LCD Controller Board
HD MI VGA 2AV LCD Board Work for 50pin RGB TTL / 30pin LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
30Pin LVDS Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD MI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm
|
|
