Professional LCD Manufacturer Make LCD Simple
10 Years
| Ask Lasest Price | |
| Brand Name : | ROYAL DISPLAY |
| Model Number : | RYP7047A |
| Certification : | ISO Rohs |
| Price : | Negotiable |
| Payment Terms : | Western Union, L/C, T/T |
| Supply Ability : | 30k/Month |
| Delivery Time : | 25~28 Working Days |

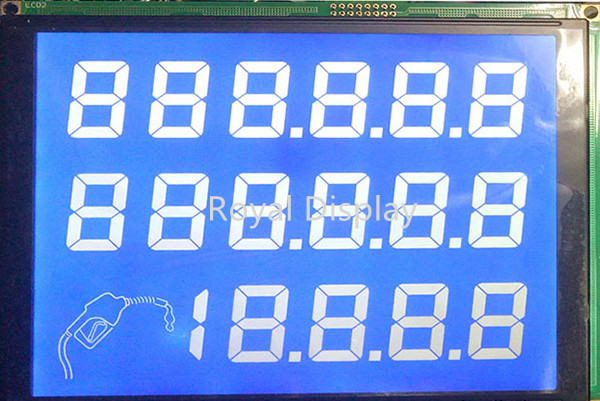

16 Digits 7 Segment Transmissive LCD Panel LCM 5.0V 26mA STN Negative LCD Display

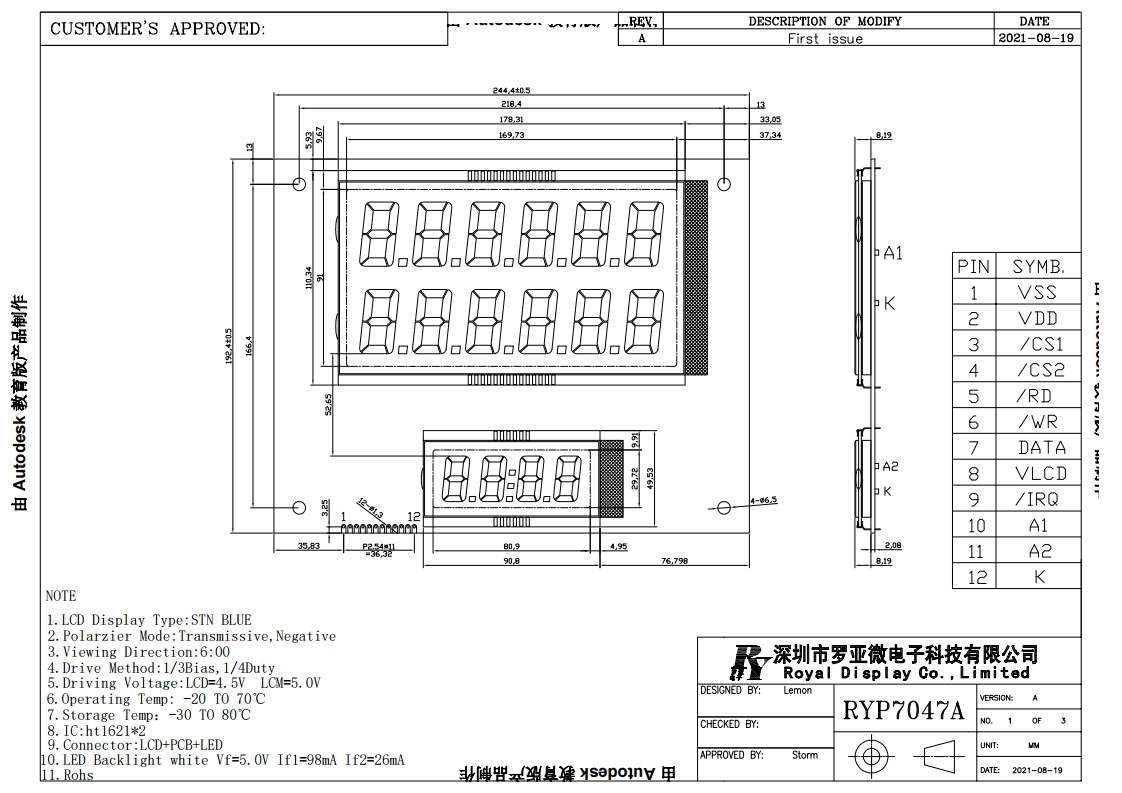

Specification Of 16 Digits 7 Segment LCD Moudule For Fuel Display
| Item | Description |
| Display Type | STN Blue Negative LCD Displaly 7Segment |
| Module Size(mm) | 244.4(W)*192.4(H)*8.19(D) |
| Active Area(mm) | 169.73(W)*91.0(H) 80.9(W)*29.72(H) |
LED Backlight | white Vf=5.0V If1=98mA If2=26mA |
| Connector | LCD+PCB+LED |
| Viewing Direction | 6 O'clock |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80º C |
Digital 7 Segment LCD Display Advantages
1. Low power consumption
2. High brightness and luminous intensity output
3. Easy assembly
4. High intensity and reliability
5. Low voltage and current operation
6. energy saving & long life
7. Solid-state LED chip based
8. Easy mounting on printed circuit board and sockets
9. Rhos&Reach approved
10. Better show effect and wide view angle
Packaging & Shipping & Delivery
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/
FEDEX/ TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
Customize Fuel LCD Display FAQ
Q: Can you customize lcd display? what do you need?
A: Yes, kindly share your detailed drawing with us, we will check and review back to you.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: Can the LCD module be Export directly?
A: We have passed SGS,RoHS and other certifications, and can export.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
|
|
