Professional LCD Manufacturer Make LCD Simple
10 Years
| Ask Lasest Price | |
| Brand Name : | Royal Display |
| Model Number : | RYD160160A |
| Certification : | SGS ROHS |
| Price : | Negotiable |
| Payment Terms : | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 300K/M |
| Delivery Time : | 15-20 work days |
160x160 COG/COB GRAPHIC LCD DISPLAY MODULE
PRODUCT DESCRIPTION
1. 160x160dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as
option
| Item | Description |
| Product Name | 160x160dots Graphic LCD Module |
| Model No. | RYD160160A |
| Dot Format | 160x160 |
| Outline (mm) | 41*35 |
| Viewing Area(mm) | 12:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 12 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | UC1698 |
| Power supply | 3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
OUR SERVICE ADVANTAGES
1. More than 10 years experience, strong background in Monochrome LCD display design.
2. IATF16949:2016 and ISO9001:2015 certificated manufacture, provided all customized solutions.
3. Faster support in Front and After-sales services. Support customer from the product design.

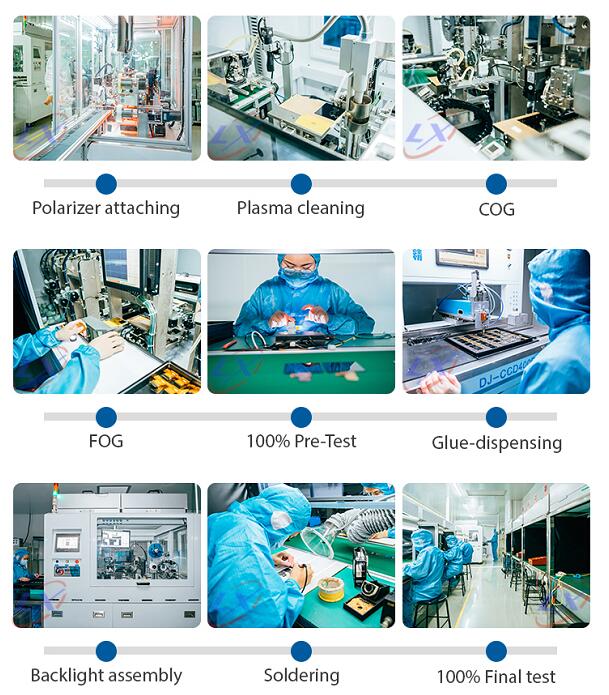

LCD Module Factory
FAQ:
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.
Q:What is your delivery method?
A:EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.
Q:What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
|
|
