Wholesale COG 128x64 graphic monochrome lcd display module
PRODUCT DESCRIPTION
1. 128x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as
option
| Item | Description |
| Product Name | 128x64dots Graphic LCD Module |
| Model No. | RYG12864M |
| Dot Format | 128x64 |
| Outline (mm) | 41*35 |
| Viewing Area(mm) | 12:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 12 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7565R |
| Power supply | 3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
FEATURES
1. Low power consumption
2. High brightness and luminous intensity output
3. Easy assembly
4. High intensity and reliability
5. Low voltage and current operation
6. energy saving & long life
7. Solid-state LED chip base
8. Easy mounting on printed circuit board and sockets
9. Rhos&Reach approved
10. Better show effect and wide view angle
ENTERPRISE HONOR

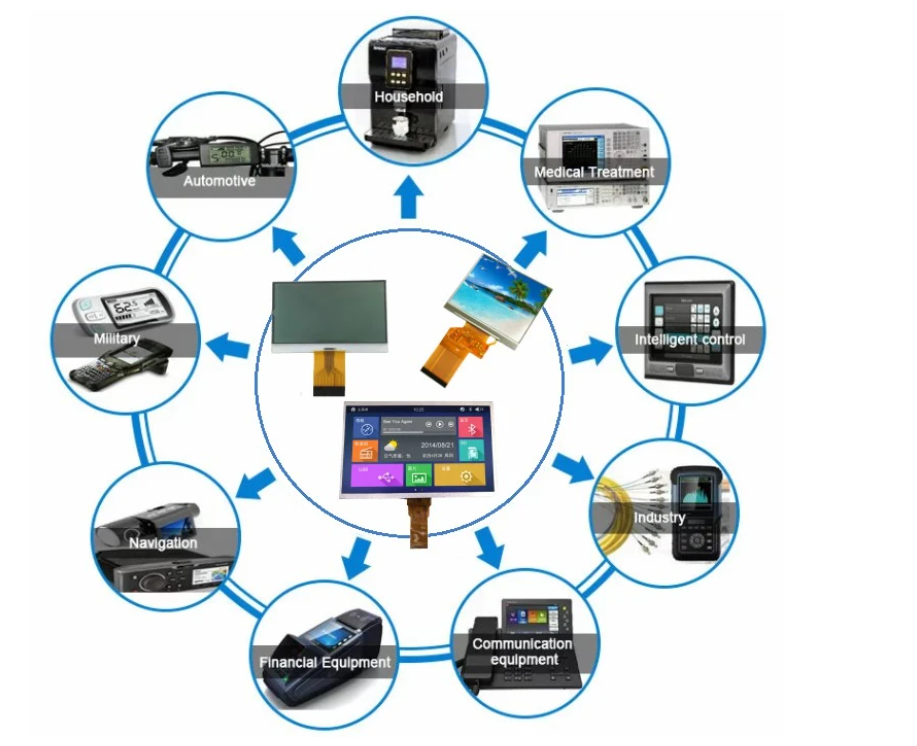

APPLICATIONS
|
|
