Brand Name : | ROYAL DISPLAY |
Model Number : | RYP256128A-GFTWWW-A |
Certification : | ROHS, ISO |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 300K/M |
Delivery Time : | 15-20 work days |

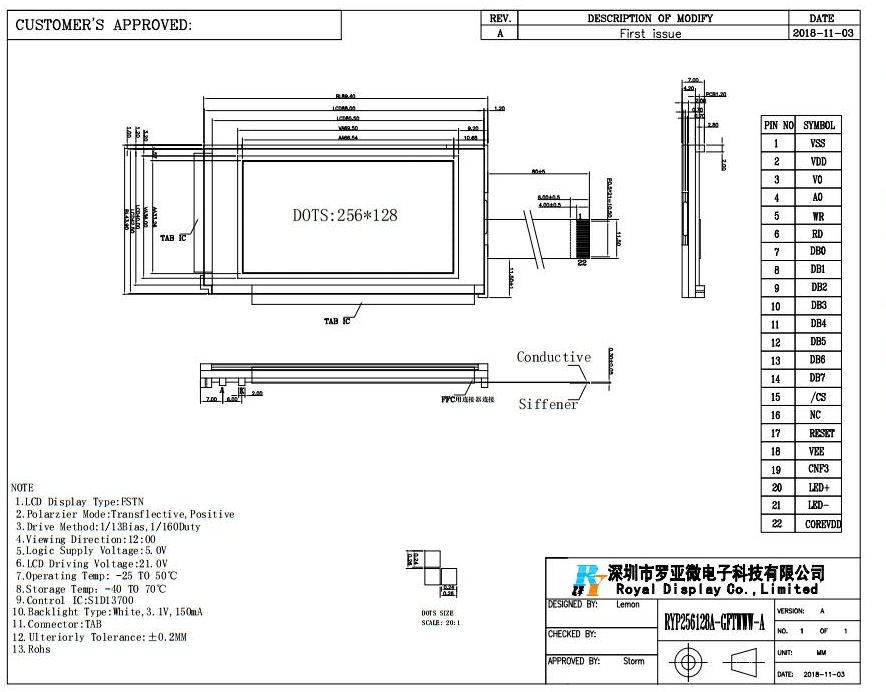

256X128 FSTN COB Positive White LCD Module
Product Description
Item | Description |
Product Name | 256X128 FSTN COB Positive White LCD Module |
Model No. | RYP256128A-GFTWWW-A |
Dot Format | 256X128 |
Outline (mm) | 89.4* 43.9* 7.0 |
Polarzier Mode | Transflective,Positive |
Viewing Angle | 12 O' clock |
Backlight | White |
Driver IC | S1D13700 |
Power supply | 5V |
Operating Temp | -25º C~50ºC |
Storage Temp | -40º C~70ºC |
Character LCM
1>> Customer requirements can be customized
2>> Available for different modes such as yellow-green, blue and white color.
3>> Support characters: 8x2,16x1,16x2,16x4,20x4, ect..
4>> Customized for the total module including new size, backlight, color,
PCB circuit board. connection mode ect.
Application: DAB Radios,Stereos, Access Control, The Printer
Royal Display Quality System
![]() |
