Professional LCD Manufacturer Make LCD Simple
10 Years
| Ask Lasest Price | |
| Brand Name : | ROYAL DISPLAY |
| Model Number : | RYG12864M |
| Certification : | ROHS, ISO |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 300K/M |
| Delivery Time : | 15-20 work days |
Custom FSTN module positive LCD display monochrome COG
Product Description
1. 128x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as
option
| Item | Description |
| Product Name | 128x64dots Graphic LCD Module |
| Model No. | RYG12864M |
| Dot Format | 128x64 |
| Outline (mm) | 41*35 |
| Viewing Area(mm) | 12:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 12 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7565R |
| Power supply | 3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
OEM/ODM
As a leading manufacturer of LCD (Liquid Crystal Display) / LCM (LCD Module), Royal Display has been devoting itself to seeking for the promotion of a comprehensive design & manufacturing solution for the Flat Panel Display (FPD) industry. Currently, its core businesses consist of the development, design, manufacturing and distribution of a wide range of TN/STN/FM LCD panels/modules used in a variety of high-value added electronic applications.
R&D
Royal Display ’s R&D engineers are well experienced, professional and focused. They are diligent in action, willing to communicate, specializing in thinking, and good at summarizing.
Every new product has to go through extreme tests, run by our R&D team to achieve perfection and fulfill customers’ satisfaction.

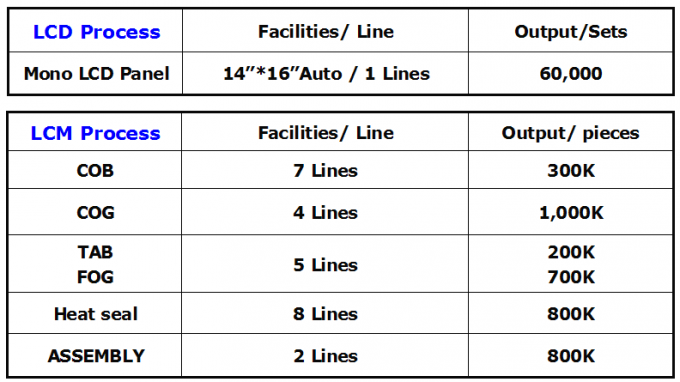

Production Line
1 . Category: TN, HTN, STN, FSTN, DSTN, ASTN, 3D glasses display, FSLCD, VA.
2 . Special process: Pin, Multicolor screen printing, Edge blending, Corner cutting, Irregular (Hexagonal, Octagonal, Curved).
3 . Duty max: 1/240 duty
|
|
