| Brand Name : | ROYAL DISPLAY |
| Model Number : | UDLP-GG19264B-FSPCELW-V01 |
| Certification : | SGS, ROHS |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 300K pcs/month |
| Delivery Time : | 15~25 working day |
5 inch FSTN Graphic LCD Module 192*64 5.06 COG display with UC1698U
Graphic LCD is a liquid crystal display specially used to display graphics and images. Compared with traditional character LCD screens, graphic LCD screens have higher resolution and richer display capabilities, and can display complex graphics, images and animations. Graphic LCD screens usually have higher pixel density and resolution, which can display more details and image information, providing clearer and more accurate graphics display. Graphic LCD screens can support a variety of colors and color depths, from monochrome to full color, allowing graphics and images to be presented in a richer, more vivid way. The following are some data about our 192x64 dots graphic LCD display.

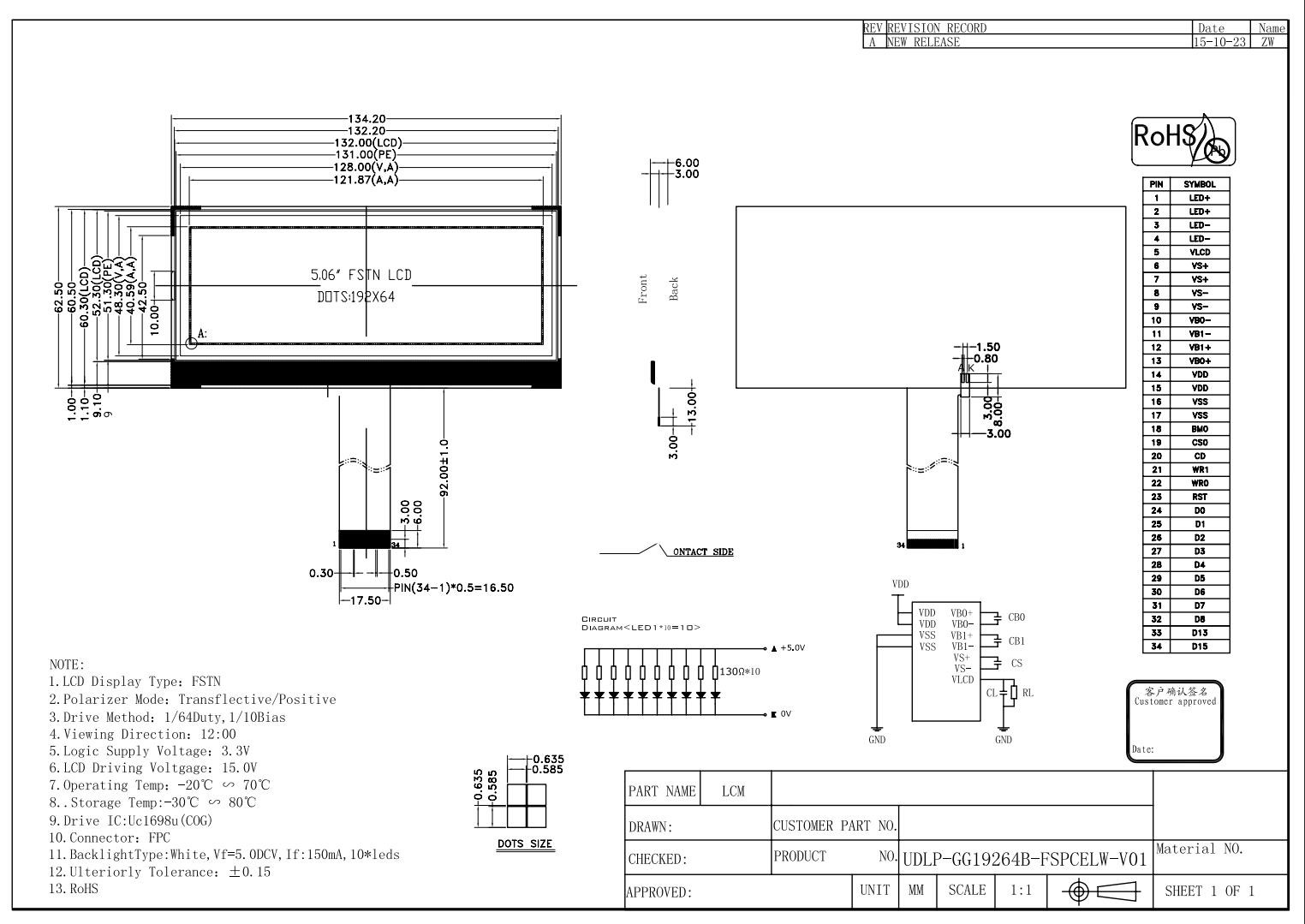

| ITEM | SPECIFICATION |
| Display Type | 192*64 dots |
| LCD Type | FSTN, Transflective/Positive,1/64Duty,1/10Bias |
| Outline Size | 134.2(L)*62.5(W)*6.0(T)mm |
| View Area | 128.0*48.3 mm |
| Viewing Direction | 12 O'clock |
| Display Area | 121.87*40.59 mm |
| Dots Size | 0.585*0.585 mm |
| Dots Pitch | 0.635*0.635 mm |
| Controller & Driver | UC1698U (COG) |
| Interface Mode | 6800, 8080; SPI 4-Wire, 3-Wire |
| VDD&VOP(Type) | 3.3 V & 15.0 V |
| Backlight Color | White, 5V, 150mA |
| Wide range of operating temperature | -30 to 70 |
| Wide range of Storage temperature | -30 to 80 |
A 192x64 dots graphic LCD module offers several advantages for
applications that require custom graphics and user interface
elements.
*High Resolution: It provides a relatively high pixel density,
allowing for the display of detailed graphics and images. This can
enhance the visual appeal and clarity of the displayed content.
*Customization: A graphic LCD module allows for the individual
control of each pixel, enabling the creation of custom graphics,
icons, and user interface elements.
*Versatility: The ability to display custom graphics and images
makes it suitable for a wide range of applications.
*User Interaction: The display of custom graphics and user
interface elements allows for intuitive user interaction. It
enables the presentation of buttons, menus, sliders, and other
interactive elements, enhancing user experience and usability.
*Information Display: The high resolution enables the presentation
of detailed information, such as graphs, charts, and data plots.
*Low Power Consumption: Graphic LCD modules generally consume less
power compared to other display technologies like TFT-LCDs.
*Compact Size: This module is available in compact form factors,
making it suitable for applications with limited space constraints.
*Cost-Effective: Graphic LCD modules are often more cost-effective
compared to higher-resolution displays like TFT-LCDs.
It is a 192x64 dot matrix LCD screen with high image quality, wide viewing angle. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in smart equipment, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture equipment, and various instruments, such as evaluation instruments, power system equipment, laboratory instruments, medical instruments, fire protection systems, temperature and humidity transmissions, pressure transmissions, analytical instruments, environmental protection testing instruments, etc. And the versatility and graphical capabilities of this module make it suitable for a wide range of applications where custom graphics and user interfaces are needed.
1. Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Correct Packaging Way: Packed in anti-static bags with foam box to ensure safety in transportation.6. Competitive Price: Give you a direct factory price.
7. Better After-sales Service: Long for one year warranty.
|
|
