| Brand Name : | ROYAL DISPLAY, HKC or customized |
| Model Number : | 65H1R |
| Certification : | SGS, ROHS |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 300K pcs/month |
| Delivery Time : | 15~25 working day |

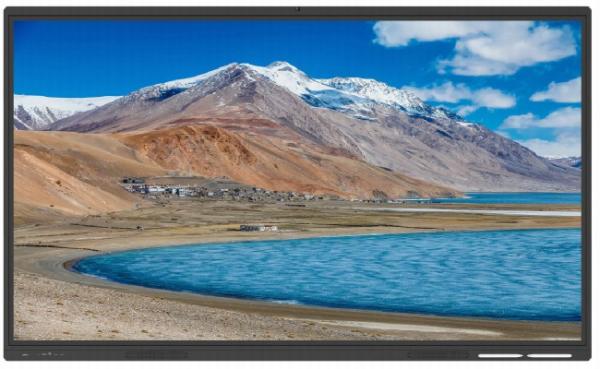

1. 产品外观图/Product Appearance and Functionality
2. 显示规格/Display
| 尺寸 Size | 65 inch | 75 inch | 86 inch |
| 分辨率 Resolution | 3840( H )×2160(V) | ||
| 画面比例 Picture Aatio | 16:09 | ||
| 显示区域 Active Area | 1428.48 x 803.52 | 1649.664 ×927.936 | 1895.04 x 1065.96 |
| 色彩数 Colors | 1.07B( 8bit+FRC) | ||
| 对比度 Contrast Ratio | 1200:1(Type) | 1200:1(Type) | 4000:1(Type) |
| 响应时间 Response Time | 9.5ms(Type) | 8ms(Type) | 8ms(Type) |
| 色域 Color Saturation | 70% NTSC(Type) | 70% NTSC(Type) | 70% NTSC(Type) |
| 可视角度 Viewing Angle | 178°( H )/178°(V) | ||
| 钢化玻璃 Cover Glass | Anti-glare Cover Glass |
| 贴合方式 Bonding Type | 零贴 Zero Bonding |
| 背光类型 Backlight type | DLED |
| 整机亮度 Brightness | 350cd/㎡(± 10%) |
| 寿命 Life span | ≥30000h |
3.操作系统/OS
系统版本 OS | Android 11.0 |
| CPU | Quad core ARM Cortex-A55 |
| GPU | ARM Mali-G52 MP2 (2EE) |
运行内存 RAM | 4G |
存储空间 ROM | 32G |
4.通信规格/Communication
WiFi & Bluetooth | 波段 Frequency Band | 2.4G/5G |
WiFi 标准协议 WiFi protocol | IEEE 802.11a/b/g/n/ac/ax | |
蓝牙 Bluetooth | BT 5.0 |
5.触摸规格/Touch
触控类型 Touch Type | 红外触控 Infrared Touch |
触摸点数 Touch Points | 40 点 40 points (it is 32 touch under android and 40 under windows) |
书写点数 Writing Points | 5 点 3mm书写(90%以上触摸区域) 5 points 3mm writing(over 90% Area) |
触控精度 Touch Accuracy | ±1mm( 90%以上区域) ±1mm( over 90% Area) |
单点响应速度 Response Time for Single Touch | ≤5ms |
最小识别物 Minimal Identifier | 2mm |
书写高度 Writing height | ≤3mm |
插值分辨率 Touch Interpolation Resolution | 32767( W )× 32767( D) |
理论点击次数 Theory Clicks | 无限次 Unlimited |
支持系统 Supported Systems | Windows10/Windows8/Windows7/Android/Windows/XP/Linux/ Mac OS/Chrome |
6.扬声器/Speaker
声道 Sound channel | 2.0 |
功率 Power | 2×15W |
7. 摄像头麦克风/Camera & Mic
摄像头 Camera | 4800W | External Optional |
麦克风 Mic | 8 阵列 8 array | External Optional |
8.输入输出接口/Input & Output
前端口 Front I/O | HDMI IN | 1 | 1 路前置 1-way front-mounted |
Type-C IN | 1 | 1 路前置 1-way front-mounted | |
USB 3.0 | 2 | 2 路前置 2-way front-mounted | |
Touch USB 3.0 | 1 | 1 路前置 1-way front-mounted | |
下端口 Down I/O | HDMI OUT | 1 | |
| RJ45 IN | 1 | ||
| RJ45 OUT | 1 | ||
| PC Audio IN | 1 | ||
| VGA | 1 | ||
| DP | 1 | ||
| Audio OUT | 1 | ||
| Optical OUT | 1 |
侧端口 Side I/O | RS232 | 1 | |
| Android USB2.0 | 1 | ||
| HDMI IN | 1 | ||
| HDMI IN | 1 | ||
| Type-C IN | 1 | ||
| Touch OUT | 1 | ||
| USB3.0 | 1 | ||
| USB3.0 | 1 |
9.电气规格/Electrical
尺寸 Size | 65 inch | 75 inch | 86 inch |
电源输入 Power Input | 100-240V~50/60Hz 3.2-1.3A | 100-240V~50/60Hz 4.2-1.7A | 100-240V~50/60Hz 5.0-2.0A |
最大功耗 Maximum Power Consumption | Max 320 | Max 420 | Max 500 |
待机功耗 Standby Power | ≤0.5W | ≤0.5W | ≤0.5W |
10.整机规格/Structure
尺寸 Size | 65 inch | 75 inch | 86 inch |
| 整机尺寸 Product Size | 1486*898*106mm | 1708*1023*106mm | 1955*1162*106mm |
| VESA 孔 VESA hole | 500×400mm | 600×400mm | 800×400mm |
壁挂螺丝规格 Wall mount screw specifications | M8×25mm | M8×25mm | M8×25mm |
| 净重 Net weight | 38Kg | 54Kg | 68Kg |
| 毛重 Gross weight | 49Kg | 65Kg | 85Kg |
11.配件/Accessories
电源线 Power cable | ×1 ,3m |
书写笔 Writing pen | ×2 |
遥控器 Remote Control | ×1 |
HDMI 线 HDMI Cable | ×1 , 3m |
Touch 线 Touch Cable | ×1 , 3m |
壁挂件 Wall Mount | ×1 |
12.环境因素/Environment
工作温度 Operating temperature | 0~40℃ |
工作湿度 Operating humidity | 10%~90%RH |
存储温度 Storage temperature | -20℃~60℃ |
存储湿度 Storage humidity | 10%~90%RH |
工作高度 Operational height | 5000m 以下 Below 5000 m |
|
|
