Professional LCD Manufacturer Make LCD Simple
10 Years
| Ask Lasest Price | |
| Brand Name : | ROYAL DISPLAY |
| Model Number : | VGM096032A4W01 |
| Certification : | SGS, ROHS |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 300K pcs/month |
| Delivery Time : | 15~25 working day |

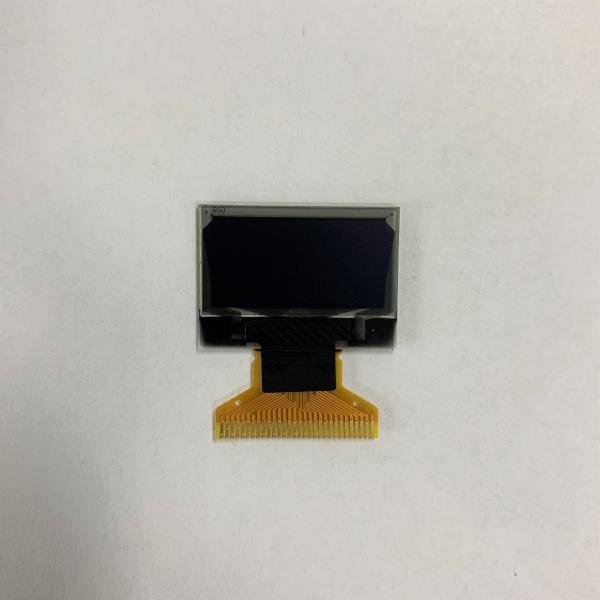

Cog 128X64 Dots 0.96''oled Display Module with SSD1306bz Driver IC
Product Describtion
One advantage of OLED displays is that each pixel emits its own light, allowing for precise control over individual pixels. When displaying predominantly dark content or black backgrounds, OLED pixels can be turned off, resulting in minimal power consumption for those pixels. This technology allows for each pixel to emit its own light, resulting in high contrast, deep blacks, and vibrant colors. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
| ITEM | SPECIFICATION |
| Display Color | Y&B |
| Dot Matrix | 128x64 |
| MODULE SIZE | 26.7(W)x19.26(H)x1.227(D) |
| VIEWING AREA | 23.74 (W) x 13.2(H) |
| ACTIVE AREA | 21.74(W) x11.2 (H) |
| DOT SIZE | 0.15(W) x0.15(H) |
| DOT PITCH | 0.17(W) x0.17 (H) |
| Drive IC | SSD1306BZ |
| Viewing Angle | 160° |
| Aperture rate | 78% |
| Interface | 6800/8080 interface, 4 wire serial interface, I2C |
| ASSY.TYPE | COG |
| WEIGHT | TBD |
| Wide range of operating temperature | -30 to 70 |
| Wide range of Storage temperature | -40 to 85 |
Product Features
OLED is an advanced display technology. Unlike traditional LCD screens, it does not require a backlight, but each pixel can emit light on its own. This self-luminous property gives OLED screens many advantages and a wide range of application scenarios.
1. High contrast: Each pixel can emit its own light, so OLED
screens can achieve very high contrast, making the picture more
vivid and clear.
2. Wide viewing angle: The self-illuminating properties of the OLED
screen allow it to have a wider viewing angle range, maintaining a
better display effect no matter which angle the screen is viewed
from.
3. Thin and lightweight: Since it does not require a backlight, the
structure of the OLED screen is simpler, making the screen thinner
and lighter, and suitable for various thin and light devices.
4. Energy saving and environmental protection: The OLED screen only
lights up the pixels when displaying content, while other areas are
turned off, so the energy saving effect is significant and is
conducive to environmental protection.
5. High refresh rate: The OLED screen has a fast response speed and
can achieve a high refresh rate, which is better for playing
videos, animations and other content.
6. Display transparency: OLED screens can be made into transparent
displays and used in smart glass, transparent billboards and other
scenes to create unique visual effects.
Our Advantages
1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. High quality with direct factory price.
4. Faster reply within 24 hours.
5. Better after-sale service.
6. Last for one year warranty.
7. Professtional ODM&OEM service.
8.Even customers do not have a cooperation with us, we also can provide technical services.
9.If mass production has any quality problem, customer can return it.
Customized Service
We can provide different customized services to meet your requirements:
1. LCD customized
2. FPC interface customized
3. Outdimension customized
4. Touch panel customized
5. Optical bonding optional
6. Brightness customized
7. Driver board customized
8. Serial control board customized
FAQ
1.What's the MOQ of your product?
-Different MOQ requirements for bulk order.
2. How do you package the product?
-For small sizes of products we often use tray + carton, and for
bigger sizes we use foam slot + carton. Also we can design packages
to meet customers' requirements.
3. How to deal with it if the goods are damaged when arrive?
-Please don't hesitate to contact me immediately, I will verify the
damage and contact logistics soon to solve it for you ASAP.
4. What about the delivery time?
-For standard product,1 week for samples,4 weeks for bulk order;
and for customization,3-4 weeks for samples,4 weeks for mass
production after sample confirmation.
5. Is there any warranty for your products?
-Yes,we offer 12-month warranty for unartificial defect.
|
|
