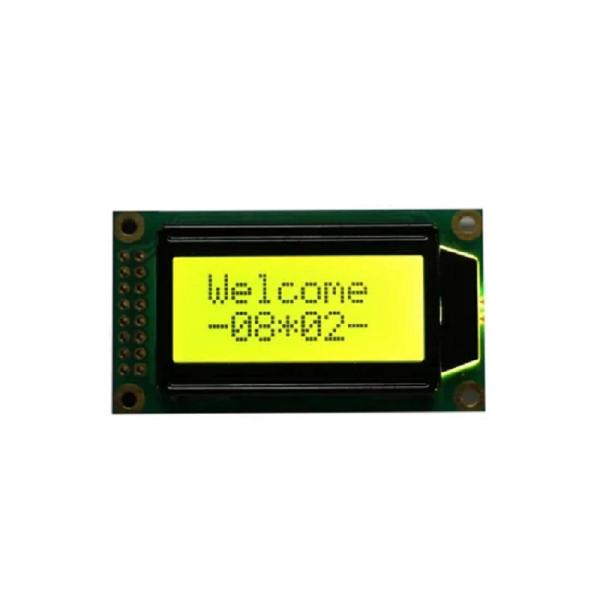

Character LCD is a liquid crystal display technology used in
electronic devices that display text and simple icons, usually
presented in a fixed character size and arrangement. A 8x2
character LCD refers to a liquid crystal display (LCD) module that
can display 8 characters in each of its 2 rows. It is commonly
known as a 8x8 character LCD or 8x2 alphanumeric LCD. LCD displays
utilize liquid crystal cells and electrical currents to control the
visibility of characters on the screen. Here is the datasheet of
our 16x4 character LCD module.
The table contains specific instructions.
| Display Format | 8(characters) ×2(line) |
| Display mode | STN,POSITIVE(Y-G),TRANSFLECTIV |
| Driving Method | 1/16 Duty, 1/5 Bias |
| View Area(mm) | 38(L) X16( W) |
| Outline Dimension(mm) | 58(L) X 32(W) XMax 13.8(T) |
| Dots size(mm) | 0.56(W) X0.66(H) |
| Dots pitch(mm) | 0.6(W)X0.7(H) |
| Character size | 2.96(W) X5.56(H) |
| IC | SPLC780D |
| View Direction | 6 O'Clock |
| Interface Mode | 8Bit MPU Interface |
| Backlight | SIDE Y-G |
| DRIVE POWER | VDD=5.5V |
| OperationTemp.(ºC) | -20 to +70 |
| StorageTemp.(ºC) | -30 to +80 |
The drawing of 0802 character LCD module
1. Image stability: Character LCDs typically have a long lifespan
and are less prone to issues such as pixel burning or image fading.
This makes it very reliable in applications that require long-term
continuous use.
2. Low power consumption: Due to its liquid crystal molecules being
arranged only when needed, it is very economical in devices that
rely on battery power or require long-term use.
3. High visibility: The character LCD provides excellent
visibility, allowing for clear display of characters and images
even in bright sunlight or low light environments. Extremely
comfortable both outdoors and indoors.
4. Information display: Character LCD is mainly used for displaying
text and numbers, suitable for applications that require displaying
messages, data, and parameters. They usually arrange characters in
the form of rows and columns.
5. Easy to control: The control of character LCD is relatively
simple and can be managed using microcontrollers or dedicated LCD
controllers. This makes its integration in embedded systems and
electronic devices easier.
6. Environmentally friendly: Compared to some other display
technologies, character LCDs use fewer materials and are more
environmentally friendly because they do not contain harmful
substances such as mercury or lead.
Character module, is an alphanumeric display that can show
characters, symbols, and numbers. 16x4 character LCD Display are
widely used in various electronic devices, such as digital meters,
timers, temperature controllers, electronic scales, etc. They can
display real-time data, measurement results, equipment status,
etc., and provide basic information display functions. 16x4
character LCD Display can also be used in embedded systems, such as
microcontroller development boards, embedded controllers, robot
control panels, etc. They can display debugging information, user
prompts, status indicators, to facilitate interaction between
developers and users.
1. Available for different modes such as TN/STN/FSTN...
2. Support characters: 8x2,16x1,16x2,16x4,20x4, ect..
3. Customized for the total module including new size, backlight,
color,
4. PCB circuit board. connection mode ect.
5. Different requirment can be met.
Q Can I get samples?
A Yes,just give us sample orders,and free samples for custom but
module fee and delievery fee should be paid.
Q How to customize an lcd module?
A Give us messages to design lcd modules and comfirm the drawings
Q Can mould cost been returened ?
A Yes, if quantity satisfied.
Q Can I get a lower price if I order large quantities?
A Yes, cheaper prices with more bigger size orders.
Q When you ship my order?
A Normally 25 days after receiving your payment, but it can be
negotiated based on order qty and production schedule.
|
|
