| Brand Name : | ROYAL DISPLAY |
| Model Number : | RYG13255A |
| Certification : | SGS ROHS |
| Supply Ability : | 300k/Month |
| Delivery Time : | 25~28 Working Days |
| Price : | Negotiable |
Graphic COG LCD Module 132X55 Dots With ST7567 RYG13255A FSTN Positive Black On White
1. 132x55 dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as
option
| Item | Description |
| Product Name | 132*55 dots Graphic LCD Module |
| Model No. | RYG13255A |
| Dot Format | 132*55 |

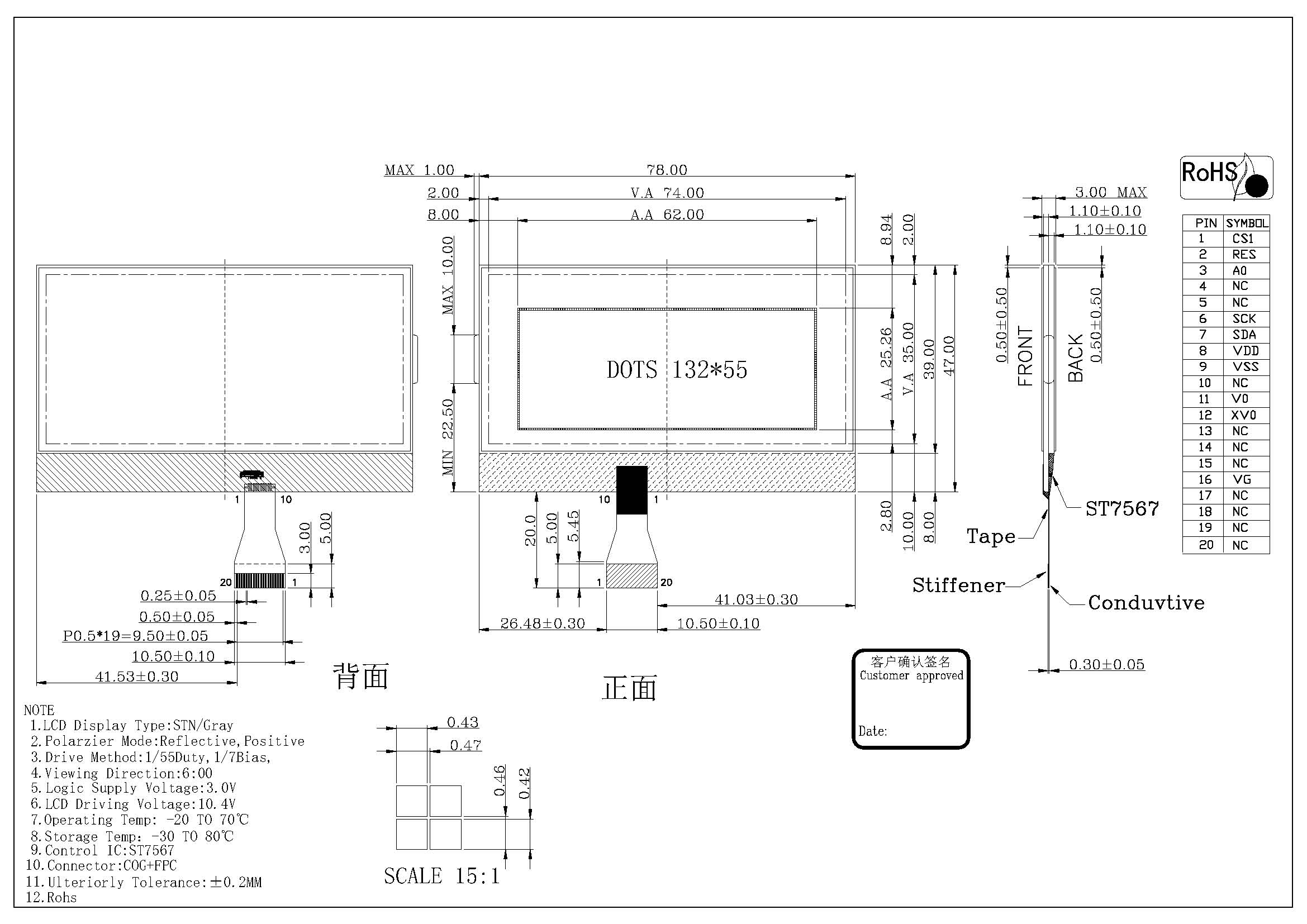

| Outline Dimension(mm) | 78*47 |
| Viewing Area(mm) | 74*35 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7567 |
| Power supply | 3.3V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
|
|
